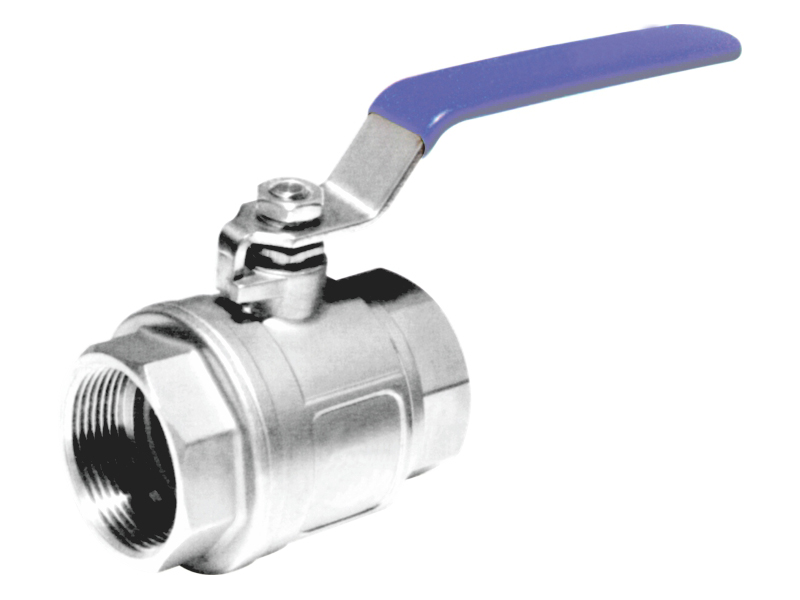

| 防爆闊桿/全通徑 | |
| 適用溫度范圍 | -20 to120℃ |
| 使用壓力 | ≤1.6MPa |
| 適用介質 | 水、氣、油 |
| 設計制造 | GB/T-12224/ANSIB16.34 |
| 螺紋標準 | BSPT/BSP/NPT/DIN/JIS/RC/G |
| 檢查與測試 | GB/T-13927/API598 |
| 氣壓測試 | 1.6MPa |
材料列表
| 部件名稱 | 材質 | ||
| 閥體 | CF8M | CF8 | WCB |
| 閥蓋 | CF8M | CF8 | WCB |
| 球 | SS316 | SS304 | SS304 |
| 閥桿 | SS316 | SS304 | SS304 |
| 閥座 | PTFE | RPTFE | PTFE |
| 線條 | PTFE | PTFE | PTFE |
| 桿密封 | PTFE | PTFE | PTFE |
| 中頭墊 | PTFE | PTFE | PTFE |
| 填料壓套 | SS202 | SS202 | SS202 |
| 手柄 | SS202 | SS202 | SS202 |
| 彈墊 | SS202 | SS202 | SS202 |
| 螺帽 | SS202 | SS202 | SS202 |
| 鎖片 | SS202 | SS202 | SS202 |
| 膠套 | PLASTIC | PLASTIC | PLASTIC |

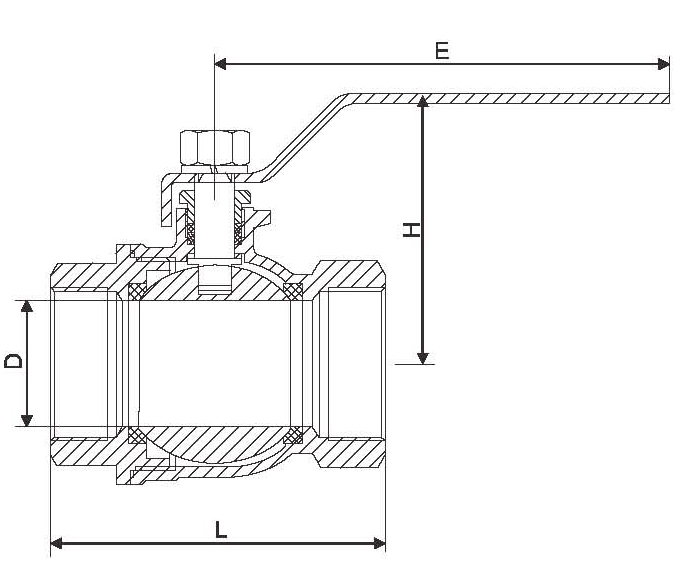

外形尺寸
| DN | L | D | H | E |
| 15 | 62.5 | 9 | 52 | 118 |
| 20 | 70 | 12.5 | 54 | 118 |
| 25 | 86 | 16 | 66 | 140 |
| 32 | 94 | 20 | 72 | 150 |
| 40 | 102 | 25 | 75 | 155 |
| 50 | 114 | 32 | 81 | 155 |
